IntelliGway HMG-2

HART Gateway

The IntelliGway HMG-2 is a dual-channel HART to Modbus Gateway designed to convert digital HART communication from field instruments into Modbus RTU (RS-485) and Modbus TCP for seamless integration with PLCs, DCS, and SCADA systems.

Request Datasheet

Product Overview

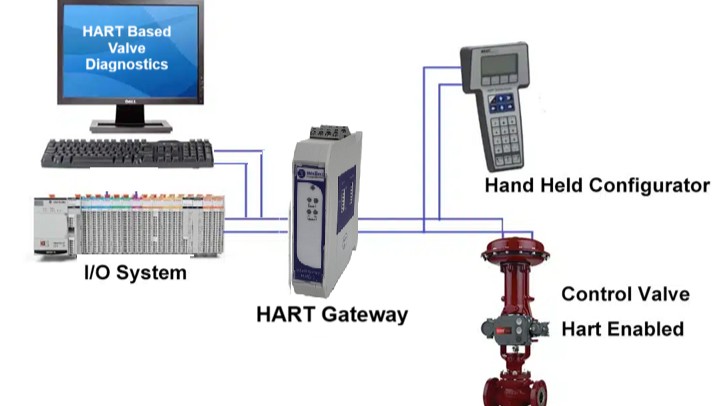

The IntelliGway HMG-2 bridges legacy HART instruments with modern industrial communication networks.

It converts HART communication into Modbus RTU and Modbus TCP while preserving existing 4–20 mA infrastructure.

Supports up to two isolated HART channels operating in both point-to-point and multi-drop modes.

Built-in loop resistors simplify installation and reduce wiring complexity.

Key Features

Compact Industrial Design, space-saving gateway which takes only 22mm horizontal space

Point-to-point mode keeps 4–20 mA signal available to PLC and DCS systems

Two isolated HART channels supporting point-to-point and multi-drop operation

Galvanic isolation between channels and HART modem for improved reliability

Monitor up to 8 process variables with configuration information per device

Alarm and diagnostics monitoring

Supports user-defined ranges, damping factor, and measurement units

Technical Specifications

Power supply specifications

Indicators and controls

HART channel specifications

Modbus channel specifications

Ambient conditions

Mechanical details

Why choose IntelliGway HMG-2?

IntelliGway HMG-2 enables digital transformation by connecting HART-enabled instruments to modern automation and analytics systems without affecting the existing 4–20 mA loop.
